PexarBolt Ultra TBT5 Dock

World's First Thunderbolt 5 Control Dock That Shows Your Workflow.

5-inch Touch Control Dashboard | 120Gbps | 22 Ports | 140W Charging | 10GbE

What makes the PexarBolt
Ultra TBT5 Dock stand out?

140W PD 3.1 Host Charging

10GbE Performance

22-in-1 Pro Port Matrix

CFexpress Type B · M.2 NVMe SSD Slot

5-inch Touch Control Dashboard

AI Status Workflow
& Session Phase

80Gb/s Performance

Or up to 120Gb/s in Bandwidth Boost mode

Dual 8K 60Hz

Or Triple 4K 144Hz Displays Support

Smart Active Cooling

Dedicated SupportExpert Help, Whenever You Need It
Gold-Standard DeliveryFast, Secure, and Hassle-Free

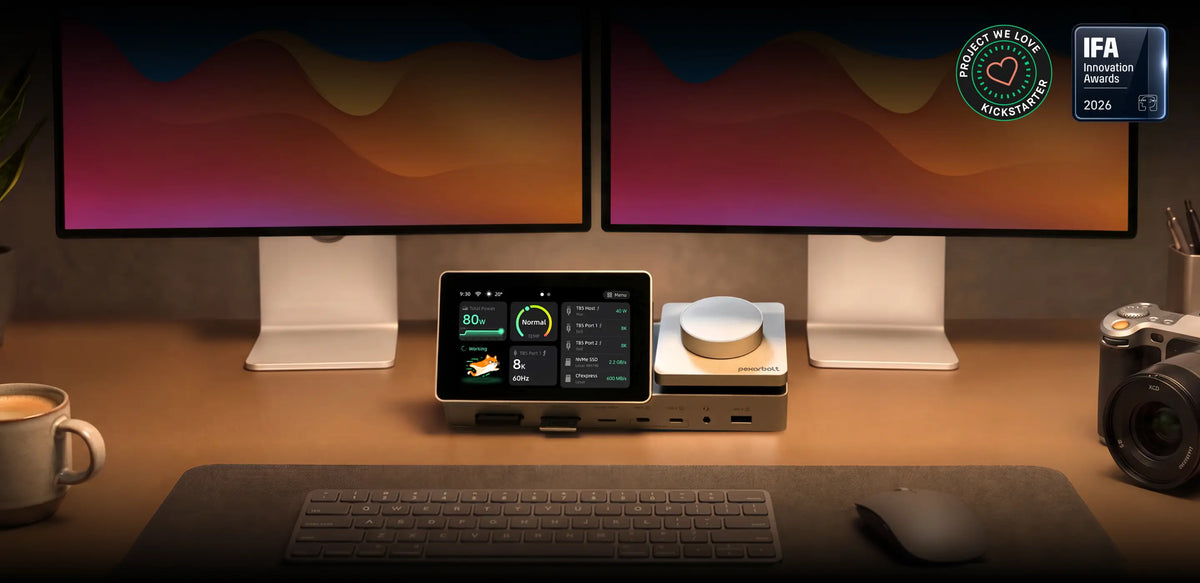

Finally, a Thunderbolt 5 Dock That
Shows You What's Happening.

Traditional docks hide everything. PexarBolt shows you what matters.

The built-in Visual Dashboard gives you real-time visibility into your entire desk setup — so you can stop guessing and start controlling.

Others

No screen
No real-time status
No visibility into workflow bottlenecks

PexarBolt

Built-in Visual Dashboard
Real-time workflow monitoring
Instant visibility into ports, power, temperature, and bandwidth

Finally, a Thunderbolt 5 Dock That // Shows You What's Happening.

*Full dashboard functionality requires the PexarBolt desktop app.

Up to 120 Gb/s for Display-Intensive Workflows

When display demand increases, Thunderbolt 5 Bandwidth Boost dynamically provides up to 120 Gb/s of transmit bandwidth, giving high-resolution, high-refresh-rate, and multi-display creative workflows more headroom.

*Bandwidth Boost provides up to 120Gb/s in one direction and 40Gb/s in the opposite direction for display-intensive workloads.

22 Ports.
Every Professional Connection.

PexarBolt replaces the clutter on a serious creator's desk. One Thunderbolt 5 connection unlocks displays, storage, network, card readers, audio, USB accessories, and power.

Scroll down to explore the full range of supported devices.

Built for Faster Media, Storage, and NAS Workflows.

From shoot to edit to archive, PexarBolt keeps your creative workflow moving. Power your laptop at up to 140W. Import from CFexpress Type B, SD, or microSD cards, back up to the M.2 NVMe SSD, edit across two 8K 60Hz or three 4K 144Hz displays, and transfer finished projects to your NAS over 10GbE.

Less waiting. Less cable clutter. More time to create.

140W Laptop Fast Charging
Keep your laptop powered for demanding creative work.
CFexpress, SD & microSD Import
Ingest footage directly from your camera cards.
Integrated NVMe SSD Slot
Add your own M.2 NVMe SSD for fast, direct footage backup.

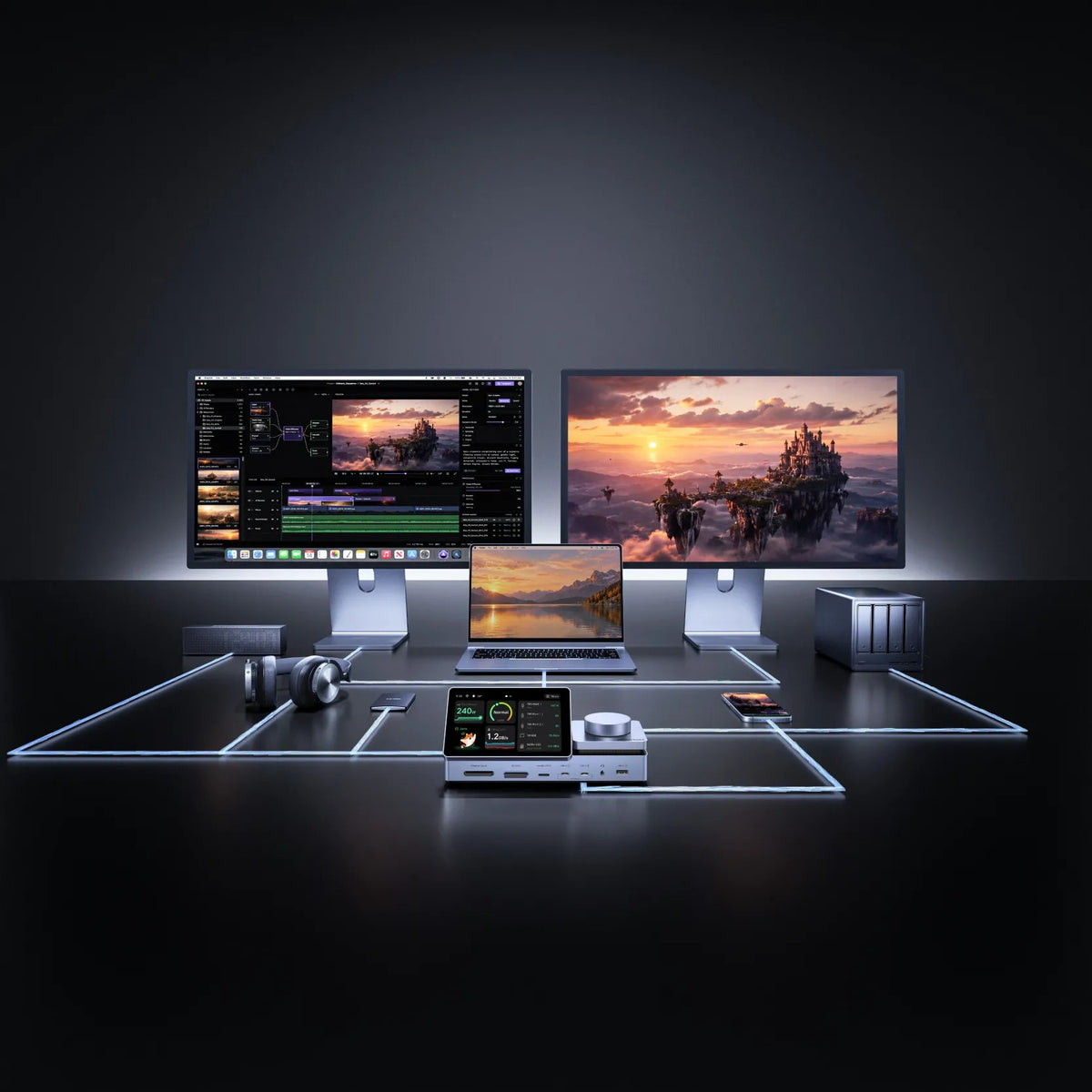

Dual 8K Editing
Edit across two 8K or three 4K Displays
10GbE NAS Export
Transfer finished projects directly to your NAS.

Enhanced Cooling for
Sustained Performance

Active smart cooling keeps demanding workflows stable, while the Visual Dashboard shows real-time temperature and thermal alerts before performance drops.

Active Smart Cooling

Built-In
Cooling Fan

Large Metal Heat
Dissipation

Directional
Airflow

Smart Thermal
Control

Enables

A Cooler Dock.
A More Reliable Workflow.

Sustained High
Performance

Fewer Workflow
Interruptions

Stable Multi-Device
Operation

Lower Noise
Distraction

Visible Thermal
Status

Better Desk
Comfort

Your AI Interaction, Upgraded.

Rotate to switch screens

Press to confirm

Tap for workflow details

Compatible with Claude Code Workflow

*Claude Code is a trademark of Anthropic, PBC. PexarBolt Ultra TBT5 Dock is an independent product and is not affiliated with, endorsed by, or sponsored by Anthropic.

One Dock. Every Device Charged.

Deliver up to 140W to your laptop through the Thunderbolt 5 host port, while two front USB-C ports provide up to 45W in total for your phones, tablets, and accessories. One connection. Less clutter. Everything charged.

Specifications

In the box

PexarBolt Ultra TBT5 Dock × 1
(220 × 85 × 57.9 mm)
Power Adapter × 1
(88 × 82 × 31 mm)
AC Power Cords × 3
(US, EU and UK versions)
SSD Installation Kit × 1
(Includes 1 screwdriver and 2 screws)
Thunderbolt 5
Cable × 1
User
Manual × 1

See Your Workflow.
Control Your Desk.

Explore the Full Range of Devices
Supported by PexarBolt

Power Your Full Setup

Up to 140W PD 3.1
Dedicated Host Charging

2 × USB Type-C Fast-Charging Ports
Up to 45W Shared Output

12 Charging-Capable
Ports in total

For Phones, Tablets &
Accessories

For Host Devices

MacBook Pro / Air

Mac mini

Windows Laptop

Creator PC

Gaming Laptop

Workstation

And More

Display Support

Supported Ports:

Thunderbolt 5

HDMI 2.1

DisplayPort 2.1

Connect Your Creative Gear

CFexpress Type B

SD 4.0 / microSD 4.0

M.2 NVMe SSD

Portable SSD

Keyboard & Mouse

Audio Gear

10GbE NAS

Webcam

USB Dongle

Printer

USB Devices

Will It Work with My Setup?

80Gb/s Or up to 120Gb/s in Bandwidth Boost mode
Dual 8K 60Hz High-resolution professional workflows
Triple 4K 144Hz Expanded multi-display workspace

	Mac									Windows PC⁵
	M5 Ultra/ Max (TB5)	M5 Pro (TB5)	M4 Max (TB5)	M4 Pro (TB5)	M4/M5/M6 Base (TB4)	M2/M3 Pro/ Max (TB4)	M1 Max/ Pro (TB4)	M3 Base⁴	M1/M2 Base	TBT5	TBT4
	Single display
2K 240Hz¹	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
4K 60Hz	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
4K 120Hz¹	✓	✓	✓	✓	✓	✓²	✓²	✓	✓	✓	✓
4K 144Hz¹	✓	✓	✓	✓	✓	✓²	✓²	✓²	✓²	✓	✓
4K 240Hz¹	✓	✓	✓	✓	✓	✓²				✓	✓
5K 60Hz	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
6K 60Hz	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
8K 60Hz	✓	✓	✓	✓	✓	✓²				✓	✓
	Dual displays³
Dual 2K 240Hz¹	✓	✓	✓	✓	✓	✓	✓			✓	✓
Dual 4K 60Hz	✓	✓	✓	✓	✓	✓	✓	✓		✓	✓
Dual 4K 120Hz¹	✓	✓	✓	✓	✓	✓				✓	✓
Dual 4K 144Hz¹	✓	✓	✓	✓	✓	✓				✓	✓
Dual 5K 60Hz	✓	✓	✓	✓	✓	✓	✓	✓		✓	✓
Dual 6K 60Hz	✓	✓	✓	✓	✓	✓	✓			✓	✓
Dual 8K 60Hz	✓		✓							✓
	Triple displays
Triple 4K 60Hz	✓	✓								✓
Triple 4K 120Hz¹	✓	✓
Triple 4K 144Hz¹	✓	✓
Triple 5K 60Hz	✓	✓
Triple 6K 60Hz	✓	✓
	Quad displays⁶
Quad 4K 60Hz	✓
Quad 4K 120Hz¹	✓
Quad 4K 144Hz¹	✓
Quad 5K 60Hz	✓

Display Compatibility Notes

* Display count, resolution, refresh rate, and color depth depend on the host, GPU, operating system, display, cable, connection method, and DSC support.

* DisplayPort and HDMI share the same video output and cannot be used simultaneously.

¹ High Refresh Rates

Refresh rates above 60Hz may require DSC support from both the host GPU and the display. Color depth may be reduced at higher resolutions or refresh rates due to bandwidth limitations.

² Certain Mac Configurations

Although sufficient bandwidth may be available, the configurations marked ² are not explicitly documented by Apple for use through a single Thunderbolt dock. Compatibility may vary depending on the display’s DSC implementation and macOS version. Provided for reference only.

³ Dual Displays

Dual LG UltraFine 5K is supported only on M5 Max or M5 Ultra or above, because each display uses two DisplayPort streams.

⁴ Base M3 MacBooks

Base-model M3 MacBook Pro support two external displays only when the built-in display is closed and a compatible macOS version is installed. Base M4 and M5 models support two external displays with the built-in display active.

⁵ Windows PCs

Display support on Windows PCs varies by GPU, computer manufacturer implementation, BIOS or firmware, graphics driver, and Thunderbolt display-stream allocation. Confirm the computer manufacturer’s display specifications.

⁶ Four-Display Configurations

The PexarBolt Ultra TBT5 Dock supports up to three direct display connections: two downstream Thunderbolt 5 ports plus either DisplayPort or HDMI. A fourth display requires Thunderbolt daisy-chaining from a compatible display. Four-display output requires a Mac with M5 Max or M5 Ultra and Thunderbolt 5 connectivity. The fourth display must be daisy-chained through a compatible Thunderbolt display.

General Product Notes

* All stated data rates are maximum interface rates. Actual performance depends on the host, connected devices, cables, workload, and system configuration.

* Unless otherwise stated, computers, displays, SSDs, memory cards, adapters, and other accessories shown are not included and must be purchased separately.

* Screen images are simulated for illustration. The actual interface may vary by software version.
