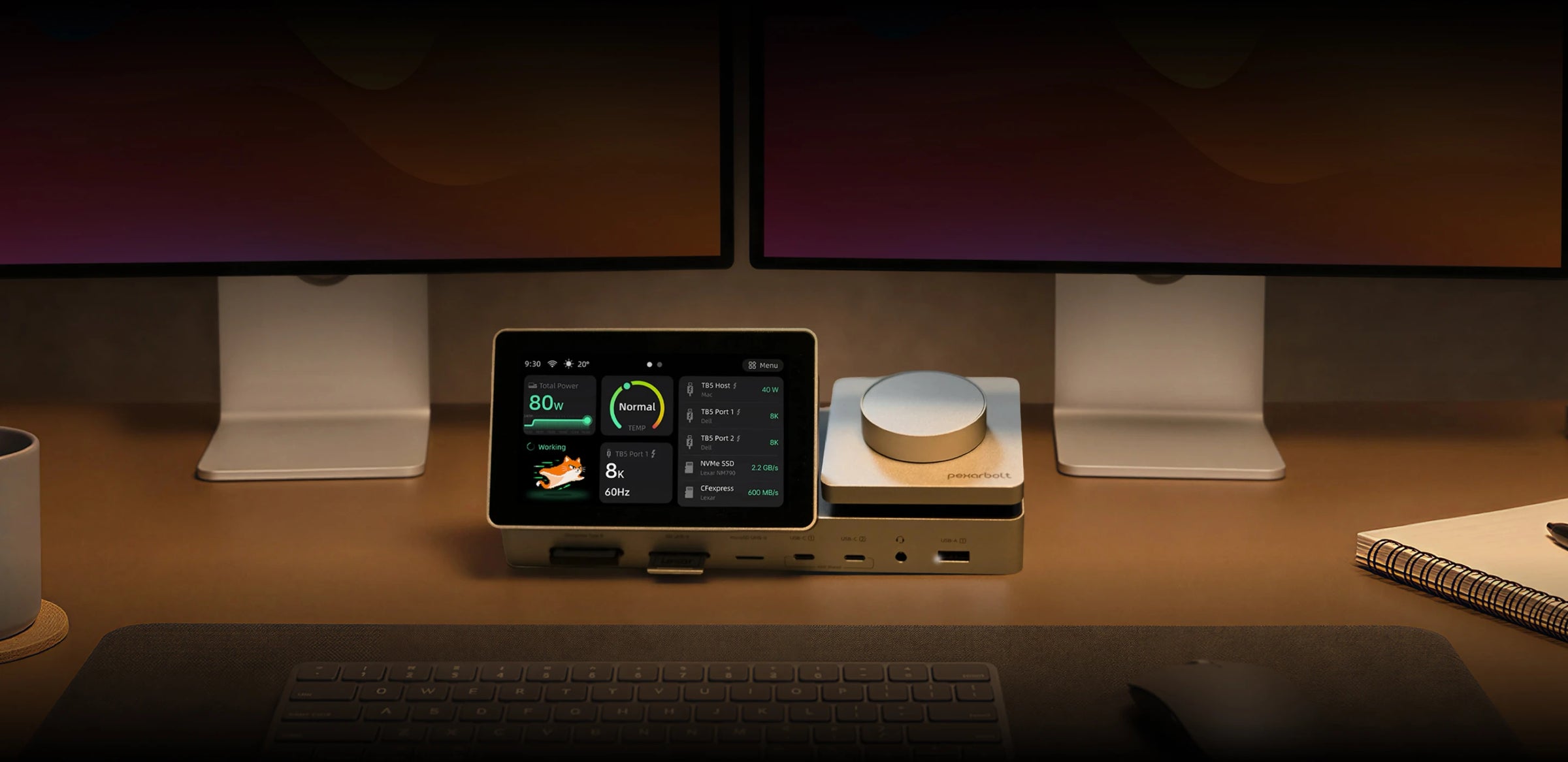

PexarBolt Ultra TBT5 Dock
World's First Thunderbolt 5 Control Dock That Shows Your Workflow.
5 inch Touch Control Dashboard | 120Gbps | 22 Ports | 140W Charging | 10GbE
Limited Super Early Bird Starts at$479MSRP $649
What makes the PexarBolt
Ultra TBT5 Dock stand out?
10GbE Performance
22-in-1 Pro Port Matrix

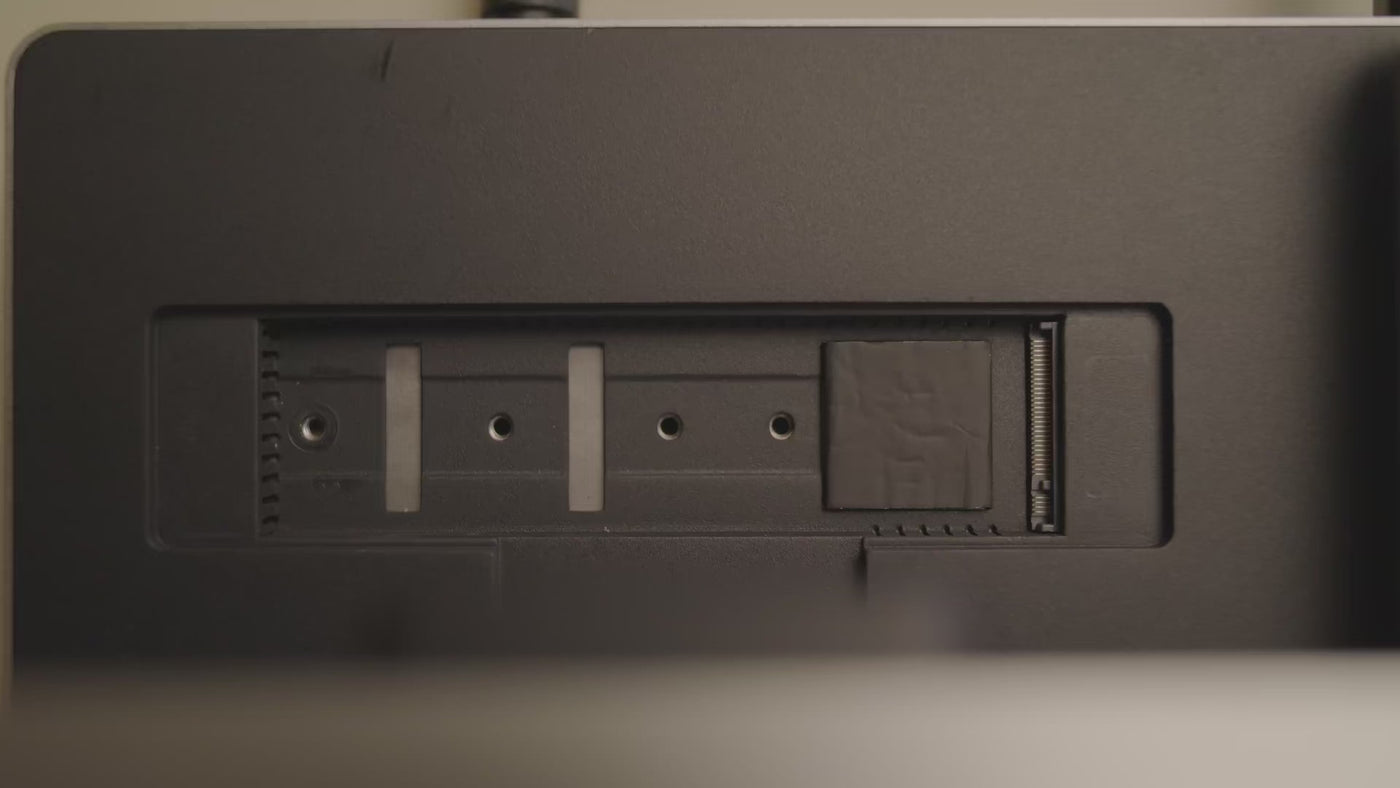

CFexpress Type B · M.2 NVMe SSD Slot

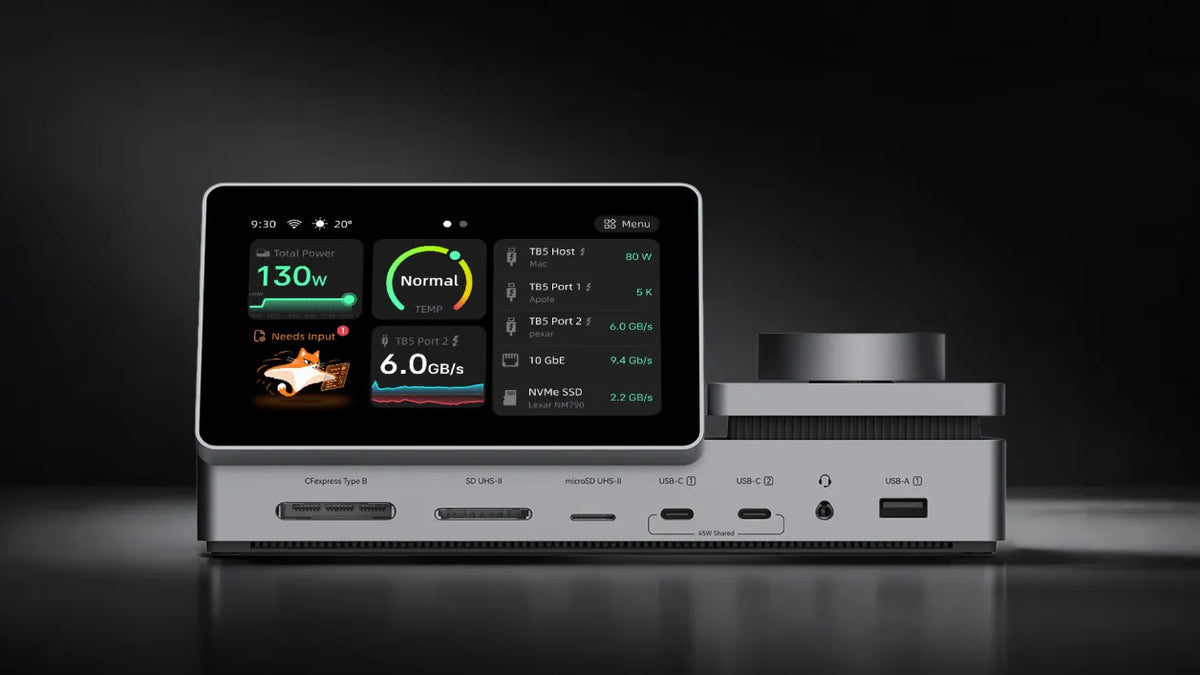

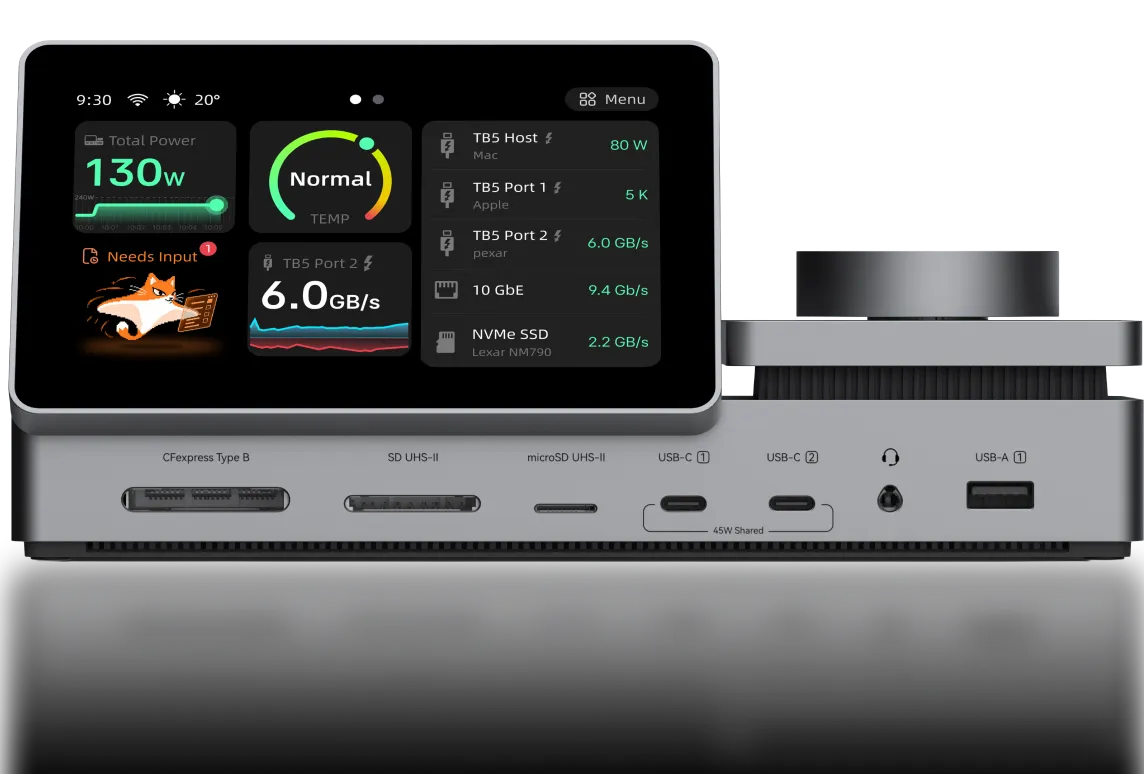

5 inch Touch Control Dashboard
AI Status Workflow
& Session Phase
80Gb/s Performance
Or up to 120Gb/s in Bandwidth Boost mode

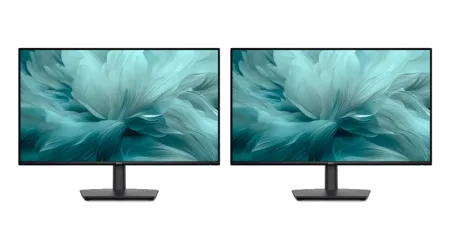

Dual 8K 60Hz
Or Triple 4K 144Hz Displays Support
Smart Active Cooling

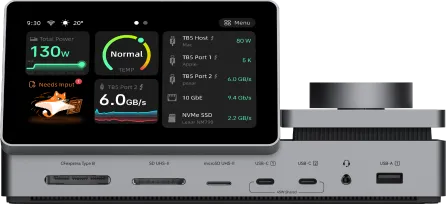

Thunderbolt 5 Speed. Fully Visible.
Up to 120Gbps performance, brought to life on a 5-inch display.
See your connections, power, temperature, and AI activity at a glance.

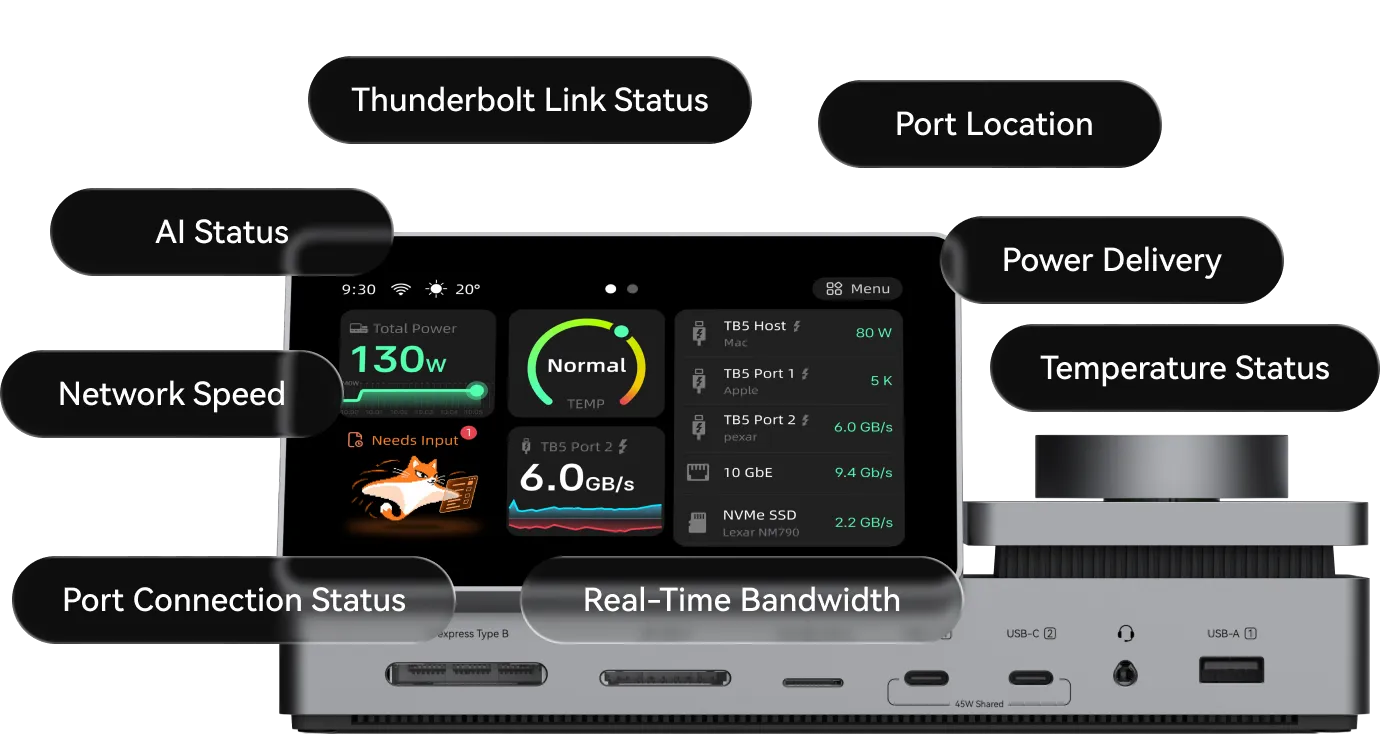

Finally, a Thunderbolt 5 Dock That
Shows You What's Happening.
Traditional docks hide everything. PexarBolt shows you what matters.
The built-in Visual Dashboard gives you real-time visibility into your entire desk setup — so you can stop guessing and start controlling.
Others
- No screen
- No real-time status
- No visibility into workflow bottlenecks
- No direct interaction
- You plug in and hope everything works
PexarBolt
- Built-in Visual Dashboard
- Real-time workflow monitoring
- Instant visibility into ports, power, temperature, and bandwidth
- Touch + Rotary Control
- You see it, understand it, and control it
*Full dashboard functionality requires the PexarBolt desktop app.

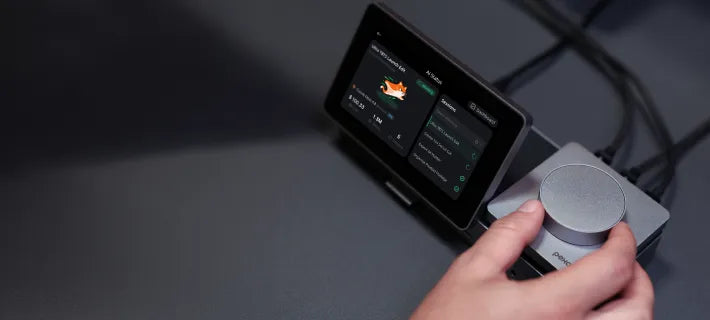

Your AI Interaction, Upgraded.
Rotate to switch screens
Press to confirm
Tap for workflow details
Compatible with Claude Code Workflow
*Claude Code is a trademark of Anthropic, PBC. PexarBolt Ultra TBT5 Dock is an independent product and is not affiliated with, endorsed by, or sponsored by Anthropic.
120Gbps Thunderbolt 5 Bandwidth Boost.
Built for the Workflows That Break Ordinary Docks.
When display demands rise, Thunderbolt 5 Bandwidth Boost dynamically allocates up to 120Gbps of bandwidth in the display direction, giving PexarBolt greater headroom for high-resolution and multi-display creative workflows.
*Bandwidth Boost provides up to 120Gb/s in one direction and 40Gb/s in the opposite direction for display-intensive workloads.

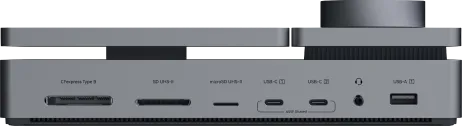

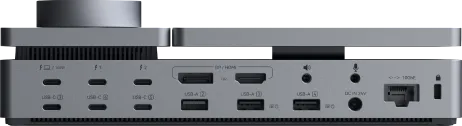

22 Ports.
Every Professional Connection.
PexarBolt replaces the clutter on a serious creator's desk. One Thunderbolt 5 connection unlocks displays, storage, network, card readers, audio, USB accessories, and power.
Scroll down to explore the full range of supported devices.

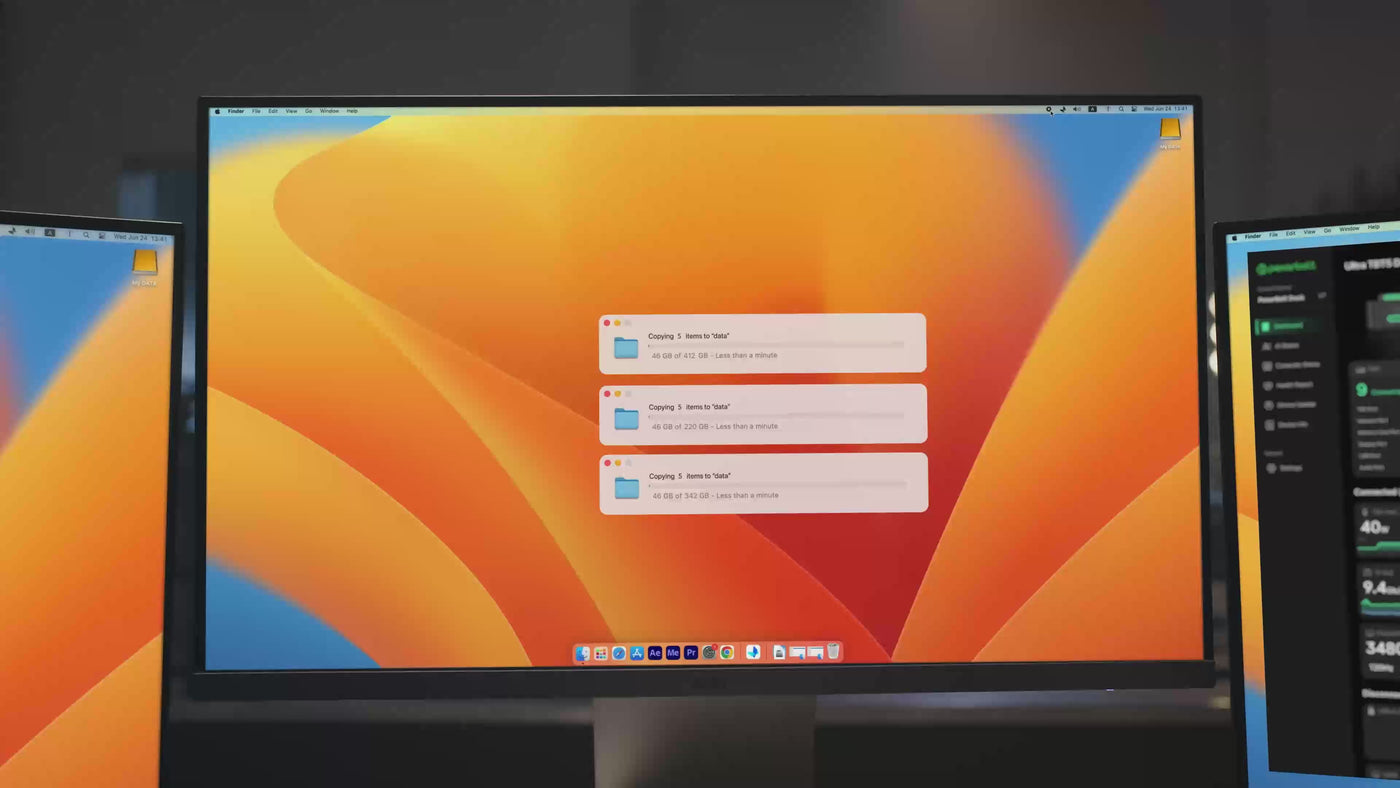

Built for Faster Media, Storage, and NAS Workflows.

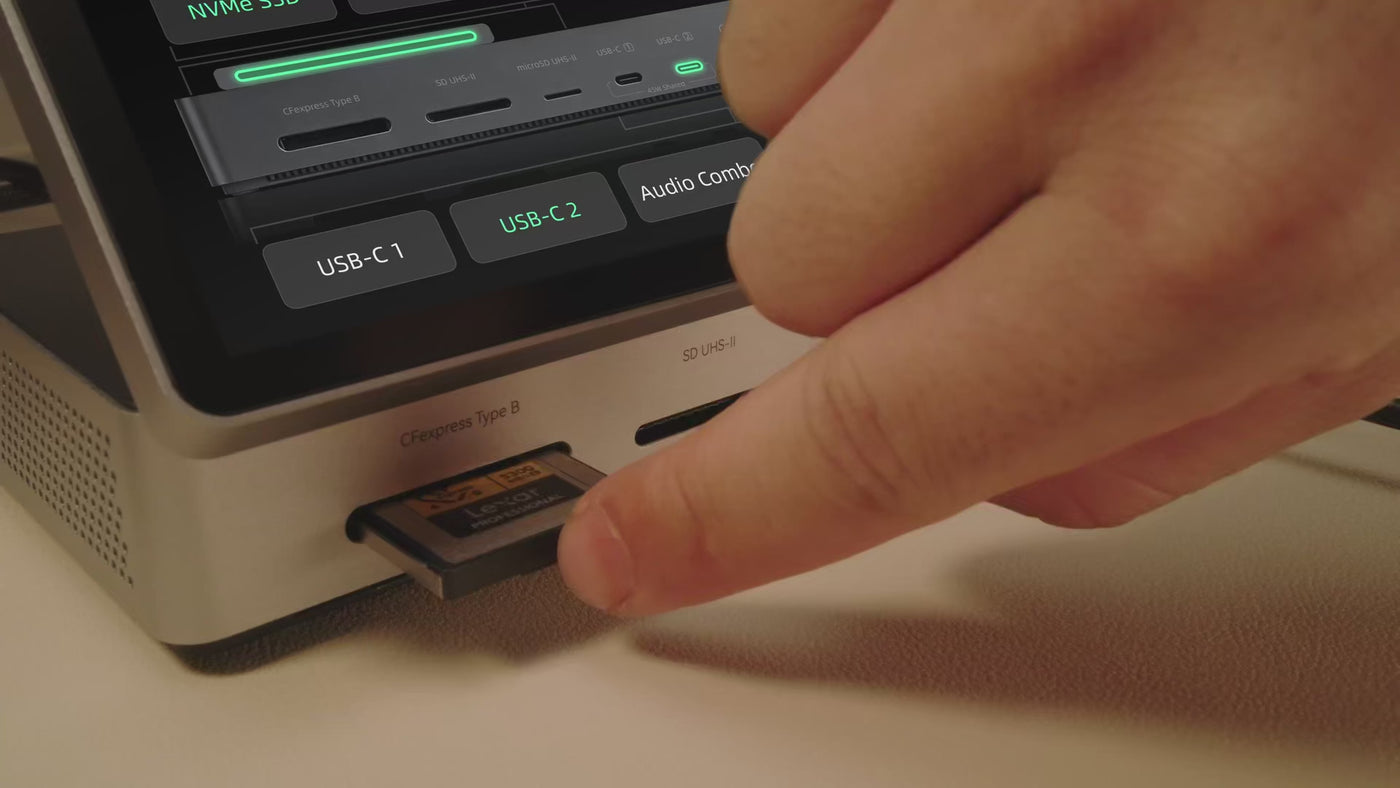

From shoot to edit to archive, PexarBolt keeps your creative workflow moving. Power your laptop at up to 140W. Import from CFexpress Type B, SD, or microSD cards, back up to the M.2 NVMe SSD, edit across two 8K 60Hz or three 4K 144Hz displays, and transfer finished projects to your NAS over 10GbE.
Less waiting. Less cable clutter. More time to create.
-

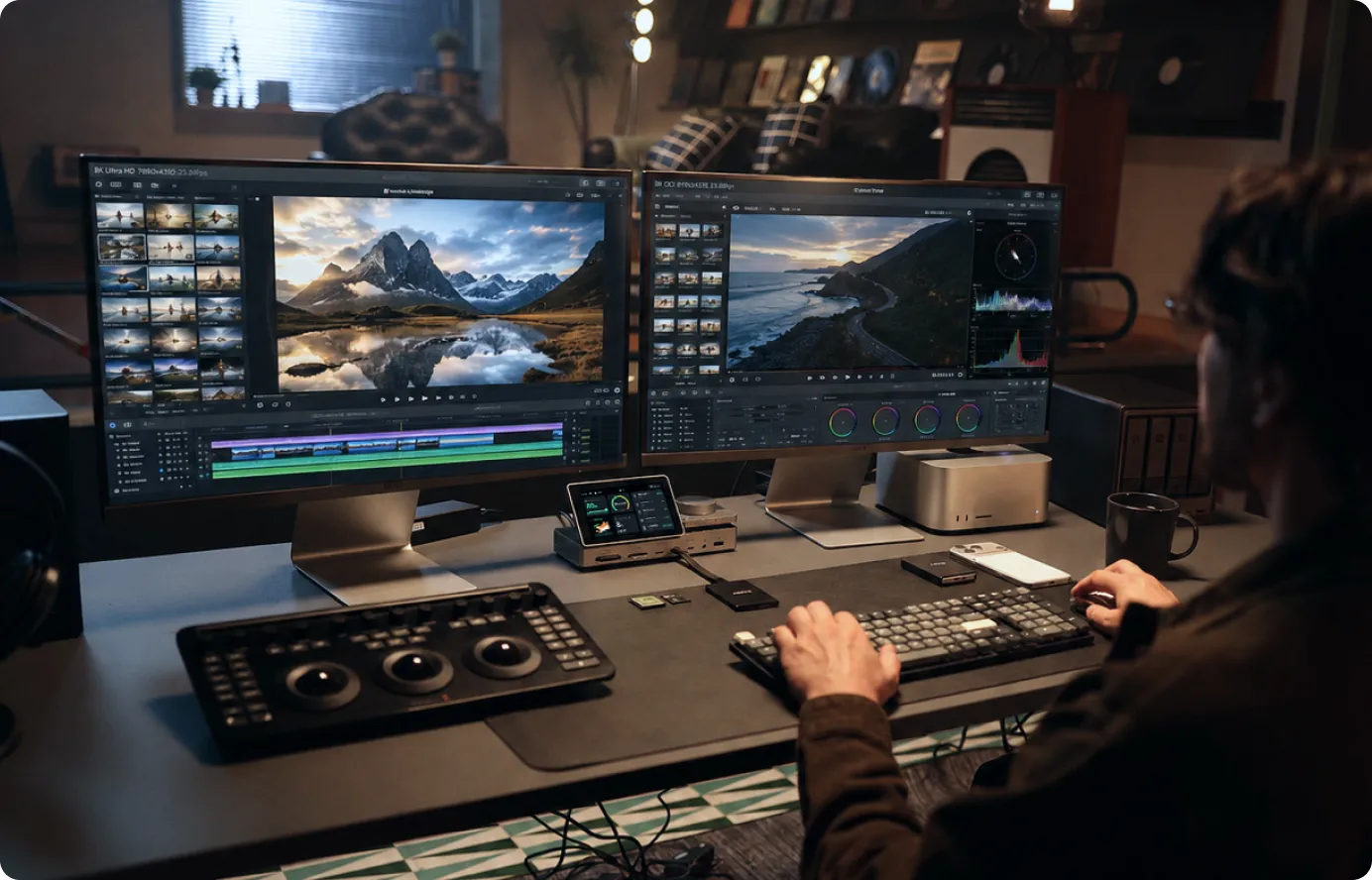

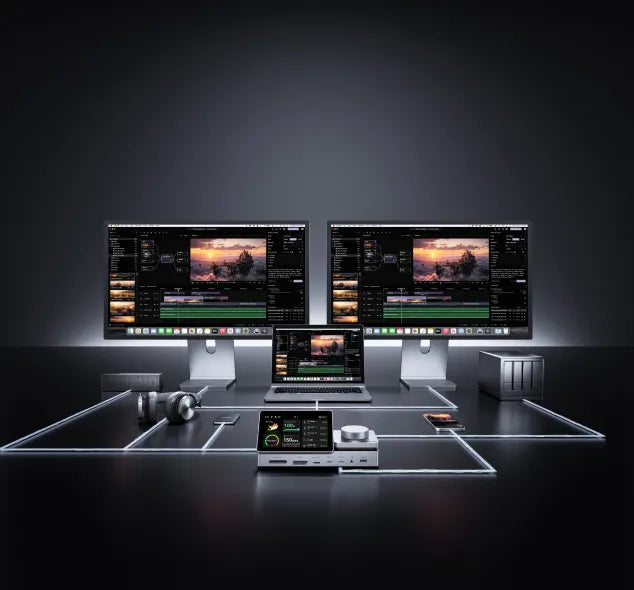

Dual 8K Editing
Limited Super Early Bird Starts at$479MSRP $649
Coming Soon on

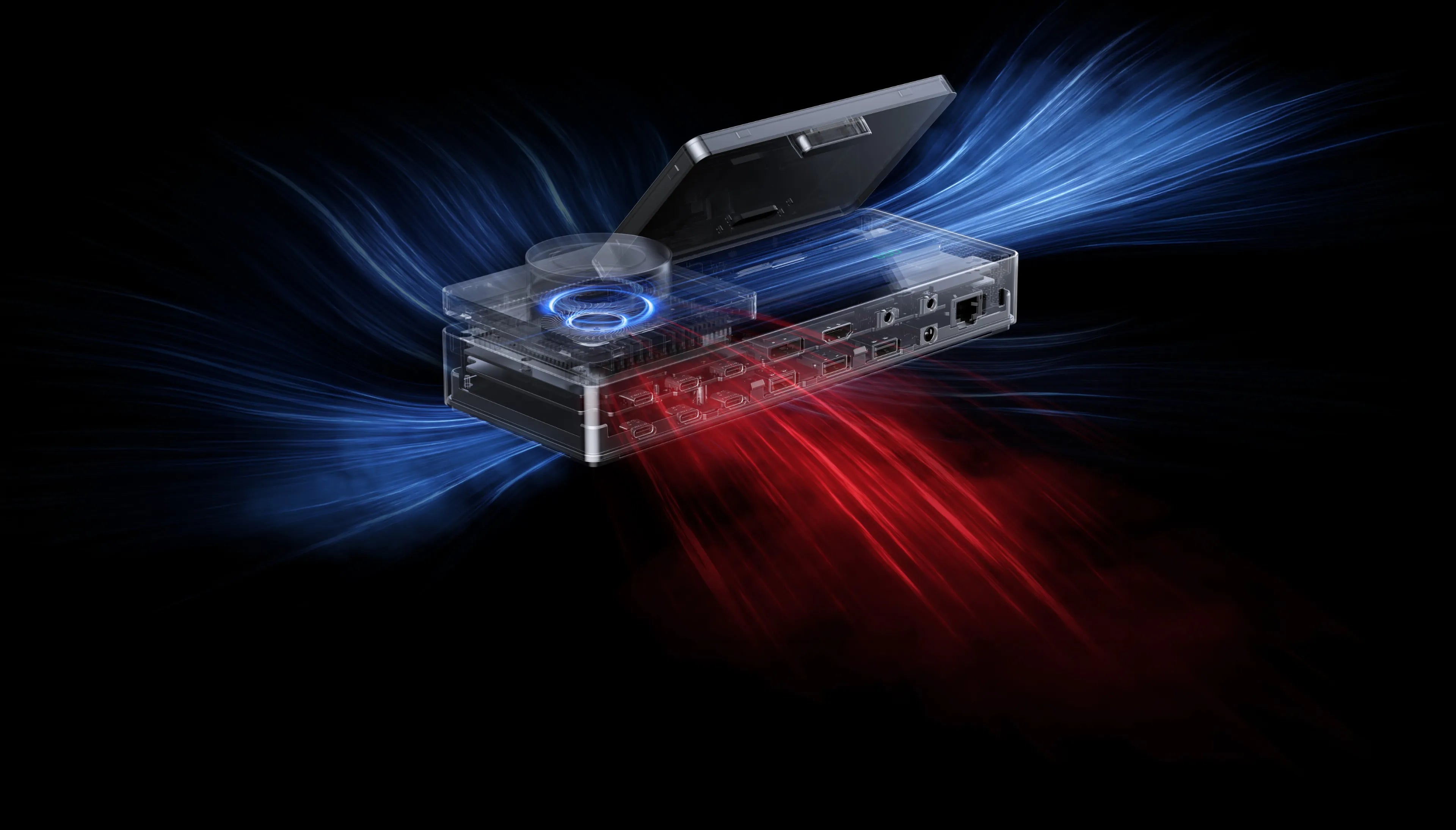

Enhanced Cooling for
Sustained Performance
Active smart cooling keeps demanding workflows stable, while the Visual Dashboard shows real-time temperature and thermal alerts before performance drops.
Active Smart Cooling
Built-In
Cooling Fan
Large Metal Heat
Dissipation
Directional
Airflow
Smart Thermal
Control
Enables
A Cooler Dock.
A More Reliable Workflow.
Sustained High
Performance
Fewer Workflow
Interruptions
Stable Multi-Device
Operation
Lower Noise
Distraction
Visible Thermal
Status
Better Desk
Comfort
One Control Dock for Every Pro Workflow.
From 8K post-production and studio photography to local AI development, PexarBolt keeps every connection visible, fast, and under control.
Smooth editing with dual 8K or triple 4K displays support, fast storage, and real-time system visibility.
Import, back up, and preview large files without interrupting the shoot.

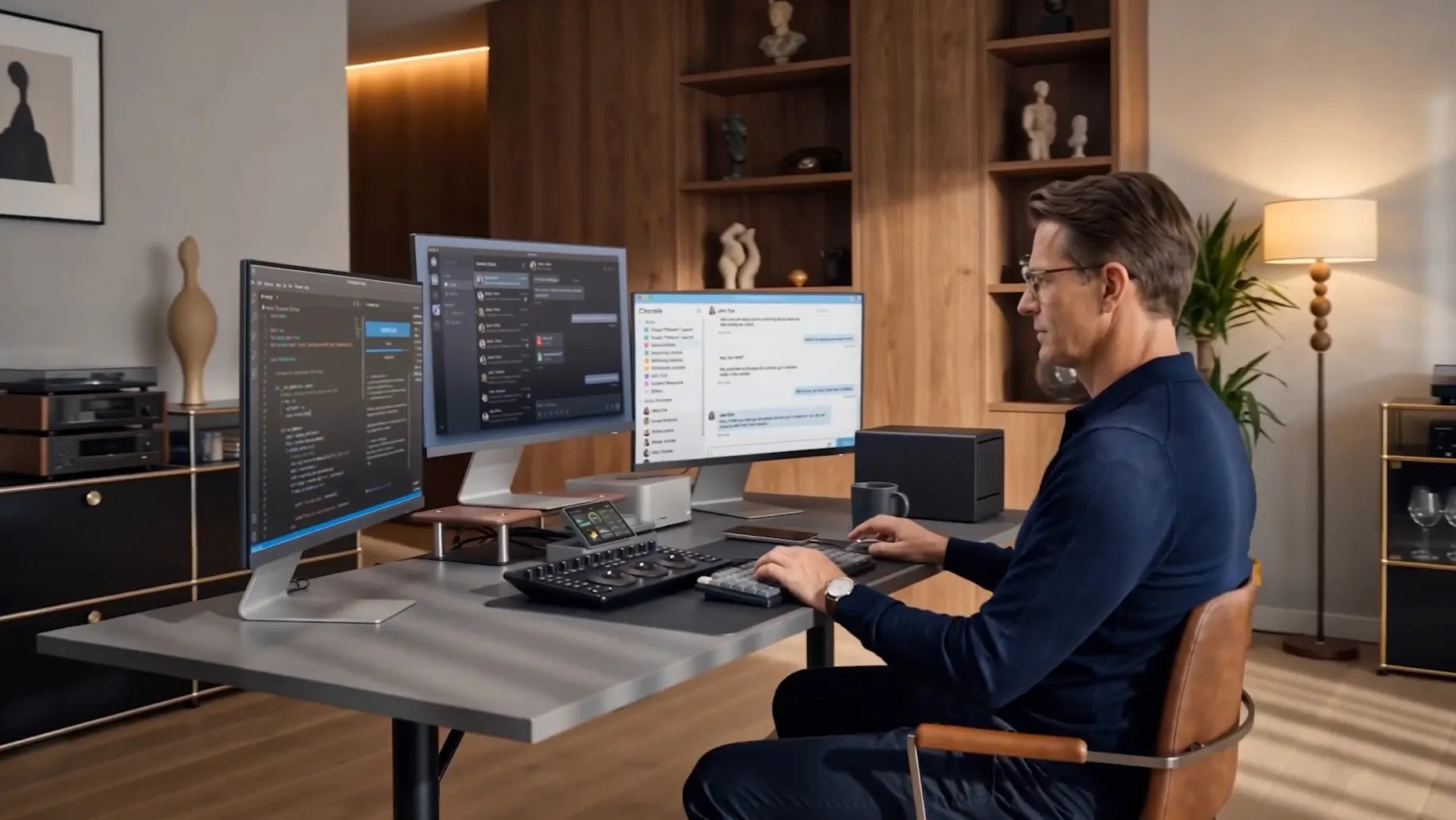

Bring fast storage, stable power, and system monitoring into one AI-ready desktop hub.

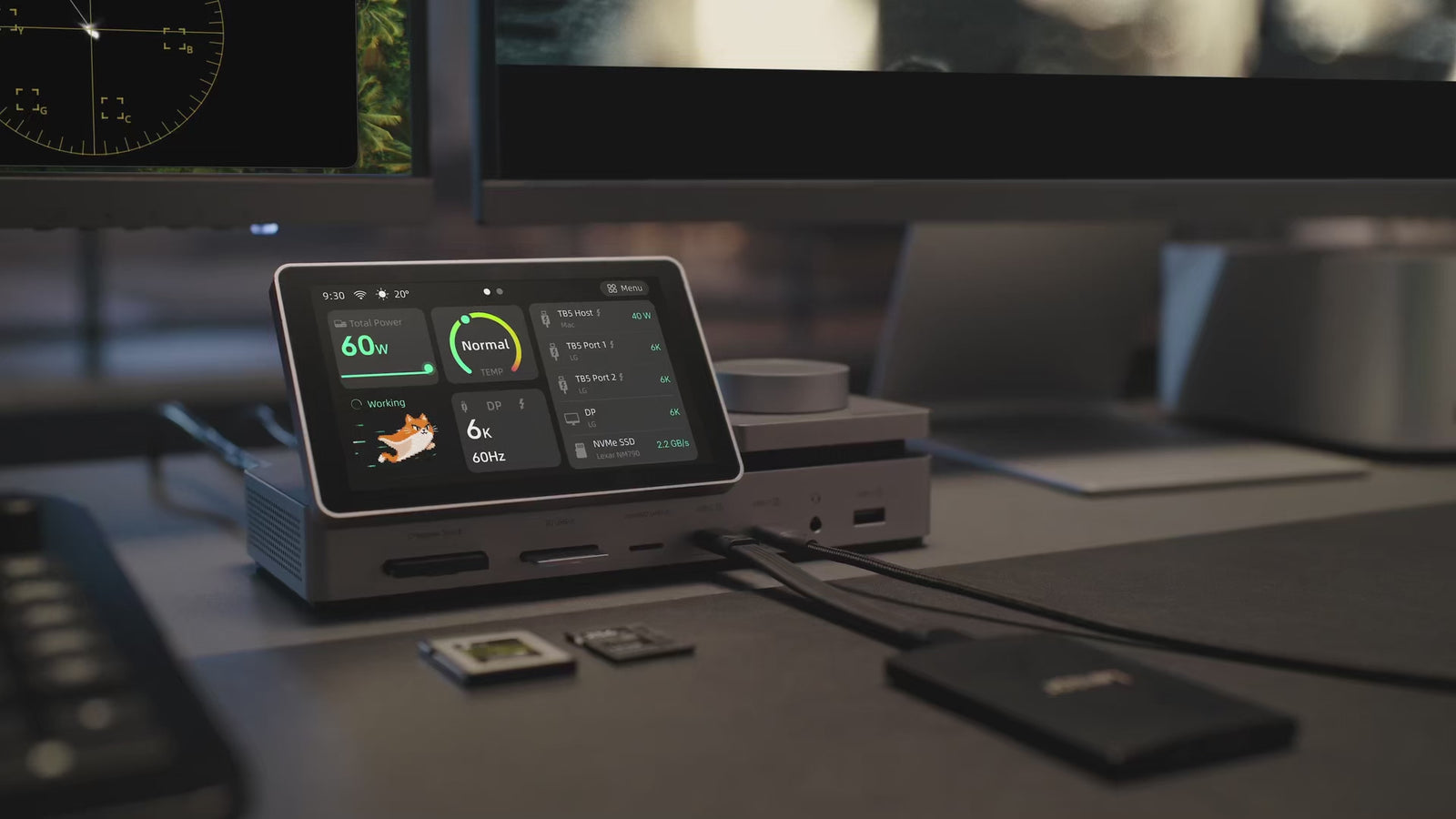

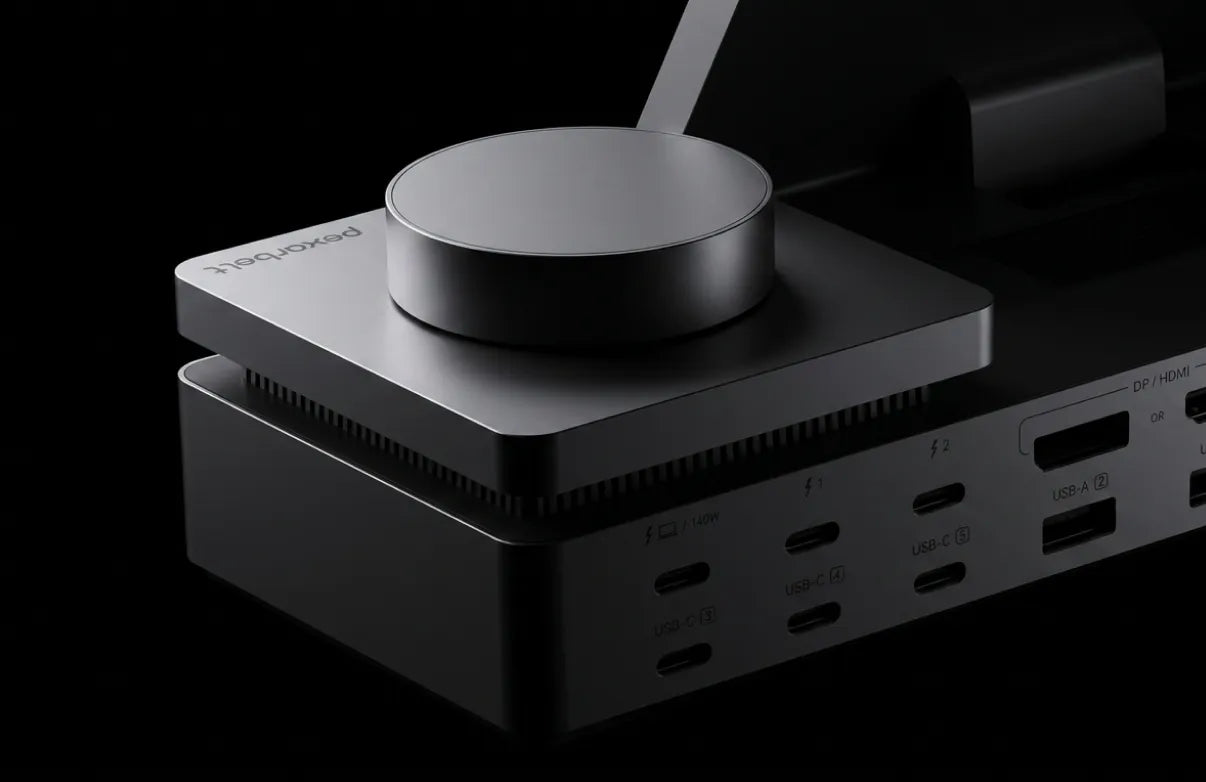

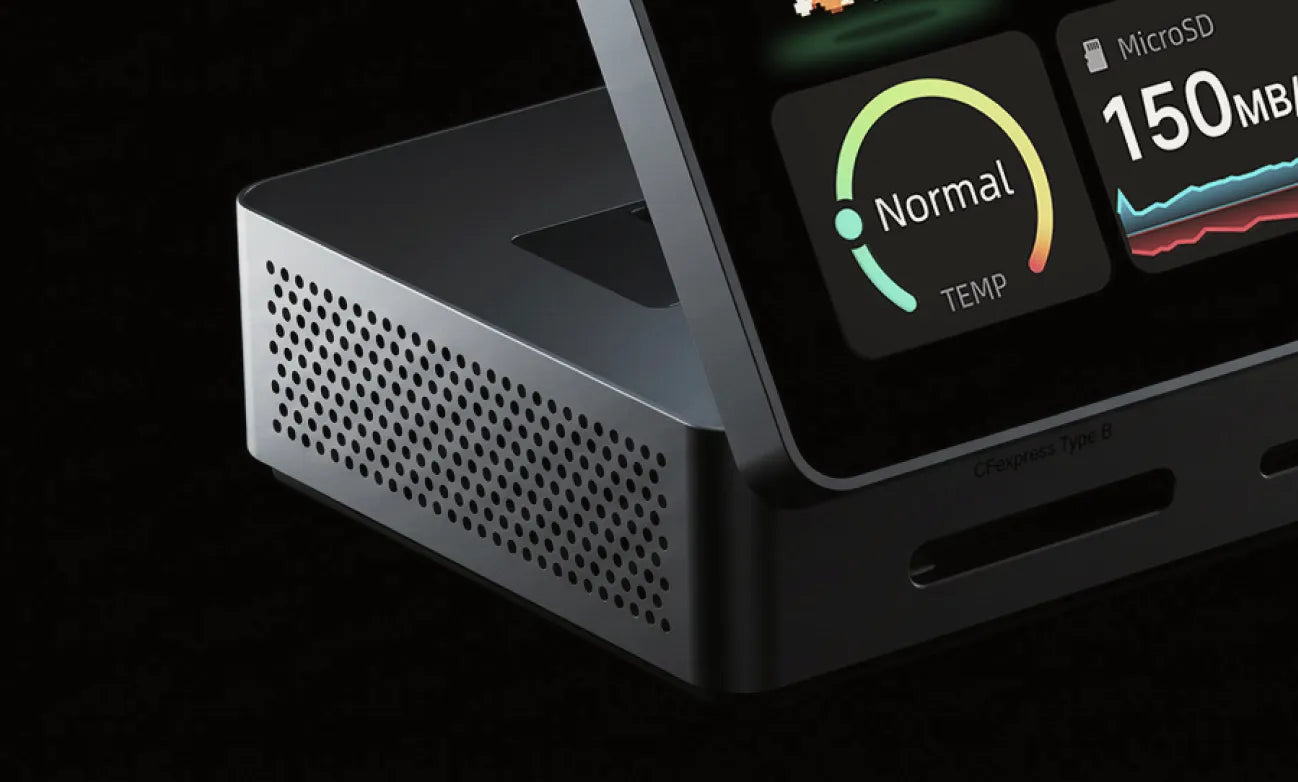

Designed to Be Seen. Built to Be Controlled.

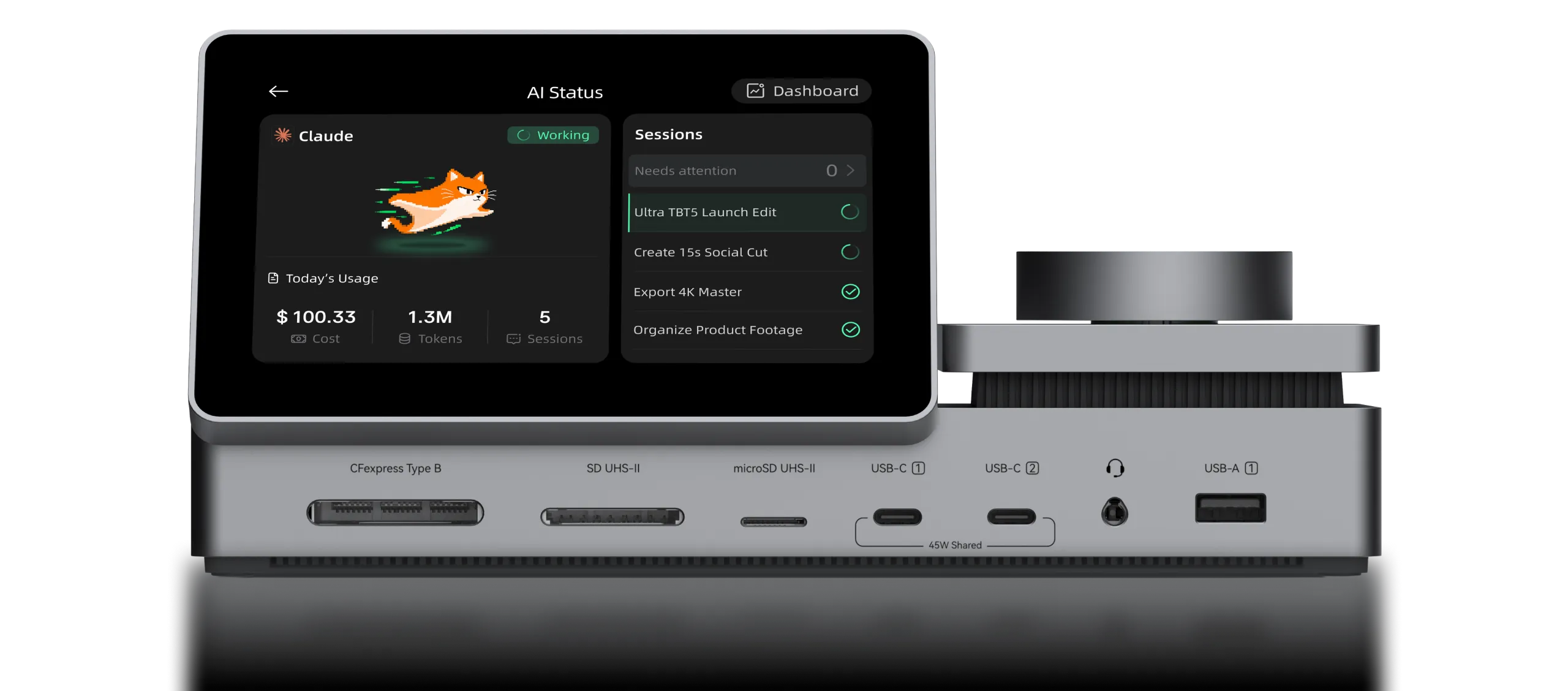

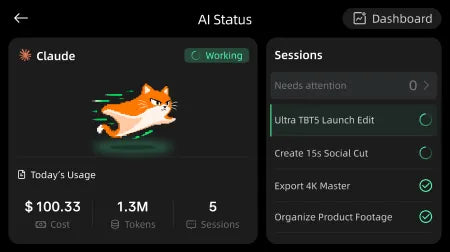

Your AI Agent, Always in View.
AI Status turns the 5-inch display into a live status center for Claude Code. See what's running, thinking, completed, needs attention, or offline—plus session progress, token usage, and cost at a glance.
One Dock. Every Device Charged.
Deliver up to 140W to your laptop through the Thunderbolt 5 host port, while two front USB-C ports provide up to 45W in total for your phones, tablets, and accessories. One connection. Less clutter. Everything charged.
See the Difference.
| Feature | PexarBolt | Typical TBT4 Dock | Standard TBT5 Dock | Pro TBT5 Dock |
|---|---|---|---|---|
| Thunderbolt Generation | TBT5 | TBT4 | TBT5 | TBT5 |
| Maximum Bandwidth | Up to 120Gb/sin Bandwidth Boost mode | 40Gb/s | Up to120Gb/sin Bandwidth Boost mode | Up to120Gb/sin Bandwidth Boost mode |
| 5-inch Visual Dashboard | Yes | / | / | / |
| Real-Time System Monitoring | Yes | / | Limited | No Built-in Display |
| Total Connectivity | 22-in-1 | Varies | Around 14 Ports | Around 20 Ports |
| Ethernet | 10GbE | Usually 1–2.5GbE | Usually 2.5GbE | Up to 10GbE |
| CFexpress Type B Reader | Yes | / | / | / |
| Built-in NVMe SSD Slot | Yes | / | / | Rare |
| Cooling System | Smart Active Cooling | Varies | Active | Often Passive |
| AI Workflow Status | AI Status | / | / | / |
| Mobile App & Remote Management | Yes | / | / | / |
Specifications
Dedicated SupportExpert Help, Whenever You Need It
Gold-Standard DeliveryFast, Secure, and Hassle-Free
In the box
PexarBolt Ultra TBT5 Dock × 1
(220 × 85 × 57.9 mm)
Power Adapter × 1
(88 × 82 × 31 mm)
AC Power Cords × 3
(US, EU and UK versions)
SSD Installation Kit × 1
(Includes 1 screwdriver and 2 screws)
Thunderbolt 5
Cable × 1
User
Manual × 1
See Your Workflow.
Control Your Desk.
Limited Super Early Bird Starts at$479MSRP $649
Coming Soon on
Explore the Full Range of Devices
Supported by PexarBolt
Power Your Full Setup
Up to 140W PD 3.1Dedicated Host Charging
2 × USB Type-C Fast-Charging PortsUp to 45W Shared Output
12 Charging-CapablePorts in total
For Phones, Tablets &Accessories
For Host Devices
MacBook Pro / Air
Mac mini
Windows Laptop
Creator PC
Gaming Laptop
WorkstationAnd More
Display Support
Supported Ports:
Thunderbolt 5
HDMI 2.1
DisplayPort 2.1Connect Your Creative Gear
CFexpress Type B
SD 4.0 / microSD 4.0
M.2 NVMe SSD
Portable SSD
Keyboard & Mouse
Audio Gear
10GbE NAS
Webcam
USB Dongle
Printer
USB DevicesFind the Right Display Setup for Your System
- 80Gb/s Or up to 120Gb/s in Bandwidth Boost mode
- Dual 8K 60Hz High-resolution professional workflows
- Triple 4K 144Hz Expanded multi-display workspace
| MacBook Pro | Windows PC⁵ | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| M5 Max (TB5) | M5 Pro (TB5) | M4 Max (TB5) | M4 Pro (TB5) | M4/M5 Base (TB4) | M2/M3 Pro/Max (TB4) | M1 Max/ Pro (TB4) | M3 Base⁴ | M1/M2 Base | TB5 | TB4 | |
| Single display | |||||||||||
| 2K 240Hz¹ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 4K 60Hz | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 4K 120Hz¹ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓² | ✓² | ✓ | ✓ | ✓ | ✓ |
| 4K 144Hz¹ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓² | ✓² | ✓² | ✓² | ✓ | ✓ |
| 4K 240Hz¹ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓² | ✓ | ✓ | |||
| 5K 60Hz | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 6K 60Hz | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 8K 60Hz | ✓ | ✓ | ✓ | ✓ | ✓ | ✓² | ✓ | ✓ | |||
| Dual displays³ | |||||||||||
| Dual 2K 240Hz¹ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ||
| Dual 4K 60Hz | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |
| Dual 4K 120Hz¹ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |||
| Dual 4K 144Hz¹ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |||
| Dual 5K 60Hz | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |
| Dual 6K 60Hz | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ||
| Dual 8K 60Hz | ✓ | ✓ | ✓ | ||||||||
| Triple displays | |||||||||||
| Triple 4K 60Hz | ✓ | ✓ | ✓ | ||||||||
| Triple 4K 120Hz¹ | ✓ | ✓ | ✓ | ||||||||
| Triple 4K 144Hz¹ | ✓ | ✓ | ✓ | ||||||||
| Triple 5K 60Hz | ✓ | ✓ | ✓ | ||||||||
| Triple 6K 60Hz | ✓ | ✓ | ✓ | ||||||||
| Quad displays⁶ | |||||||||||
| Quad 4K 60Hz | ✓ | ||||||||||
| Quad 4K 120Hz¹ | ✓ | ||||||||||
| Quad 4K 144Hz¹ | ✓ | ||||||||||
| Quad 6K 60Hz | ✓ | ||||||||||
Display Compatibility Notes
* Display count, resolution, refresh rate, and color depth depend on the host, GPU, operating system, display, cable, connection method, and DSC support.
* DisplayPort and HDMI share the same video output and cannot be used simultaneously. The HDMI port supports up to 4K at 60Hz on Macbook. For higher resolutions or refresh rates, use DisplayPort or a downstream Thunderbolt 5 port.
¹ High Refresh Rates
Refresh rates above 60Hz may require DSC support from both the host GPU and the display. Color depth may be reduced at higher resolutions or refresh rates due to bandwidth limitations.
² Certain Mac Configurations
Although sufficient bandwidth may be available, the configurations marked ² are not explicitly documented by Apple for use through a single Thunderbolt dock. Compatibility may vary depending on the display’s DSC implementation and macOS version. Provided for reference only.
³ Dual Displays
Dual 5K setups require Thunderbolt 4 displays or Apple Studio Displays. Dual LG UltraFine 5K is supported only on M5 Max because each display uses two DisplayPort streams. For 6K, use a Thunderbolt 4 display or Apple Pro Display XDR. The 6K/8K configurations shown require DSC support from both the host and display. Connect Apple Studio Display and Pro Display XDR through downstream Thunderbolt ports.
⁴ Base M3 MacBooks
Base-model M3 MacBook Pro support two external displays only when the built-in display is closed and a compatible macOS version is installed. Base M4 and M5 models support two external displays with the built-in display active.
⁵ Windows PCs
Display support on Windows PCs varies by GPU, computer manufacturer implementation, BIOS or firmware, graphics driver, and Thunderbolt display-stream allocation. Confirm the computer manufacturer’s display specifications.
⁶ Four-Display Configurations
The PexarBolt Ultra TBT5 Dock supports up to three direct display connections: two downstream Thunderbolt 5 ports plus either DisplayPort or HDMI. A fourth display requires Thunderbolt daisy-chaining from a compatible display. Four-display output requires an M5 Max or a compatible Windows Thunderbolt 5 host with a GPU capable of four display streams. The host and displays must support the required DSC modes, and all cables must support the required bandwidth.
General Product Notes
* All stated data rates are maximum interface rates. Actual performance depends on the host, connected devices, cables, workload, and system configuration.
* Unless otherwise stated, computers, displays, SSDs, memory cards, adapters, and other accessories shown are not included and must be purchased separately.
* Screen images are simulated for illustration. The actual interface may vary by software version.
